When you’re in an industry driven by efficiency and reliability, TWG winches stand as a cornerstone of operational success across multiple industries. From the unforgiving environmen s of mining operations to the towering heights of construction sites, winches are required to provide the power and precision to challenging lifts.
AMECO is proud to be a leading distributor of TWG Pullmaster Winches for use in many industries including
- Heavy Construction – Elevating materials and equipment with safety and precision.
- Mining – Ensuring the extraction of valuable resources from the earth with uncompromising strength and reliability.
- Power – Supporting the installation and maintenance of the large, delicate machinery that literally keeps our lights on.
- Marine – Navigating the relentless forces of nature, our winches offer the anchoring and towing strength needed for maritime success.
At AMECO, we understand that every project has its own set of unique challenges. No matter if you’re lifting, pulling, or positioning, we will put together a lifting package that meets the specific power and precision needs of the project.
Line pull ratings from 3,000 pounds (13kN) to 270,000 pounds (1,188 kN)Planetary Hoists

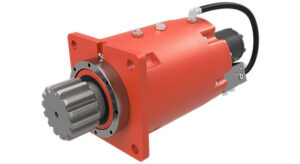

Line pull ratings from 1,000 pounds (4kN) to 75,000 pounds (330 kN).Planetary Gear Drives
Output torque ratings from 15,000 in-lbs (1,700Nm) to 270,000 in-lbs (31kNm). Mate with our slewing ring bearing for an efficient and convenient package.

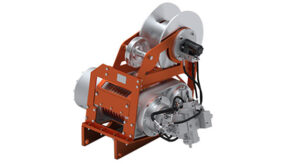

Traction Winches
Large rope storage capacity as well as a constant pulling force and constant pulling speed. The rope is stored in a separate storage drum, which provides less damage from flattening or abrasion than conventional winches.
Line pull ratings from 9,000 pounds (40 kN) to 130,000 pounds (572 kN).Worm Gear Hoists

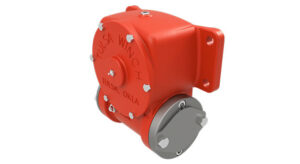

Line pull ratings from 9,000 pounds (40 kN) to 130,000 pounds (572 kN).Worm Gear Drives
Output torque ratings from 4,500 in-lbs (511 Nm) to 48,000 in-lbs (5,450Nm). Mate with our slewing ring bearing for an efficient and convenient package.

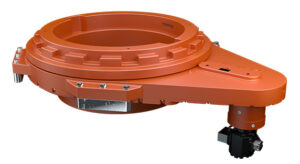

Rotary Table Drives
For use in tough drilling applications, they are sealed and will operate reliably, even if covered in drilling mud. They are designed for operating temperatures from -40 degrees to 120 degrees Fahrenheit (-40 degrees to 49 degrees celcius).
Line pull ratings from 1,500 pounds (7kN) to 30,000 pouns (132kN).Slewing Ring Bearings

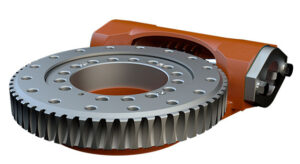

Capacities up to 6 feet (1.8m) in outside diameter and bending moment up to 3M ft-pounds (4 MNm). Mate with our planetary or worm gear drive for an efficient and convenient package.Rotators
For small bending moment applications up to 150k ft-lbs (203kNm), rotators are often smaller and easier to install than the gear drive for an efficient and convenient package.

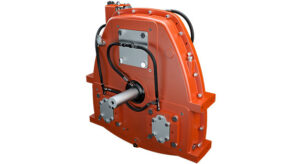

Hydraulic Pump Drives
Six input options to connect with theengine flywheel, including torsional couplings.
